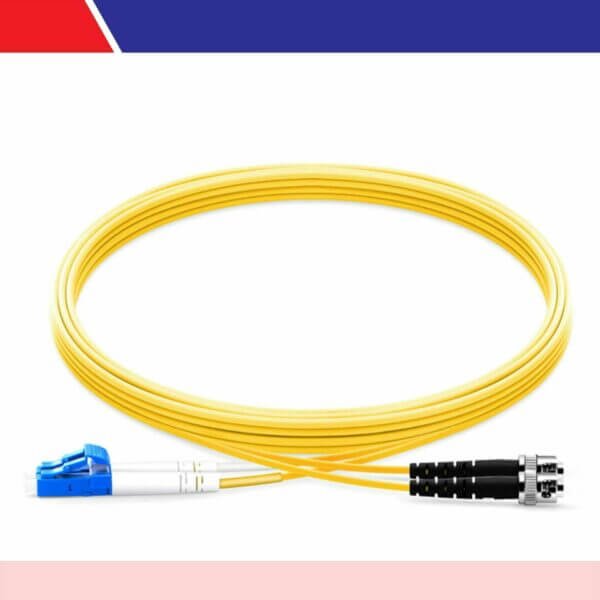

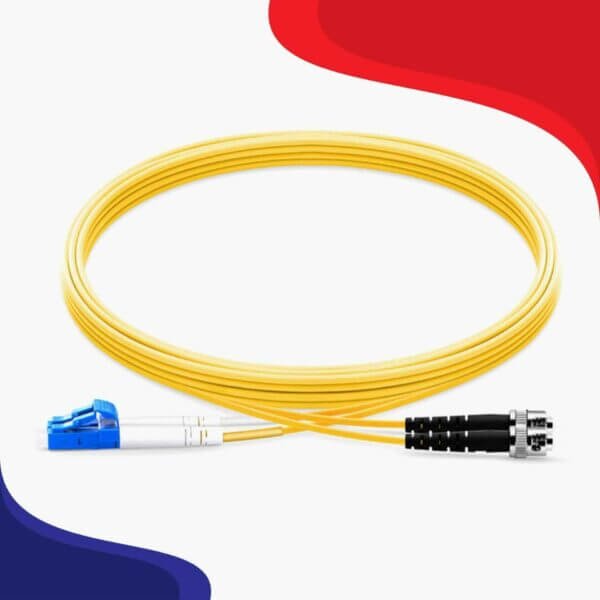

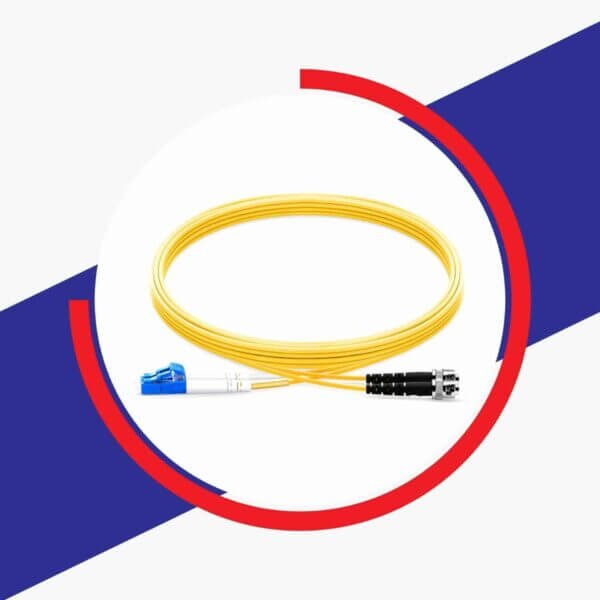

Fiber Optic Patch Cord Lszh St Lc Upc Duplex Single Mode

elv cable Single Mode St-Lc-Upc Duplex Fiber Optic Patch Cord Lszh ELV CABLE Fiber Optic Patch Cord Lszh St Lc Upc Duplex Single Mode  with a connector pre terminated on one end and exposed fiber on the other. The end is Single Mode St-Lc-Upc Duplex Fiber Optic Patch Cord Lszh stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The Pigtail are available in both single and multimode versions with either APC or UPC polish types. Application Audio/Video Intercom System Public Address System Access Control System Burglar Alarm System Lighting Control System CCTV Systems Gate Automation Smart Home Automation Building Automation Computer Systems Electronics Circuits Measurement Devices SMATV CATV Systems Office Equipment’s And Other ELV Systems Optical Specifications Mode type Single mode / multi mode Cable Type Simplex/Duplex Connector Style SC, FC, ST, LC, MTRJ, Polish type PC,UPC,APC Diameter 0.9mm, 1.6mm, 2.0mm, 3.0mm Lengths mtr. 1,3,5,10,15 Strength Member Aramid Yarn Outer Jacket LSZH/PVC/OFNR/OFNP Interchangeability &Vibration ≤0.2dB Minimum Bend radius 10 -13mm Wavelength SM:1310/1550nm MM:850nm Operating temperature -40~75°C Jacket Color Single mode Yellow / Green  , Yellow Blue Storage temperature -45~85°C Multi mode OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple) Fiber type  ITU-T G.652D, G.657A1 /A2 Multi mode OM-2 Multi mode OM-3 Multi mode OM-4 ST-UPC Insertion loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB Return loss ≥60dB ≥30dB ≥30dB ≥30dB ≥50dB Ordering Information Item Code Description ELV-3494 Single Mode St-Lc-Upc Duplex Fiber Optic Patch Cord Lszh
