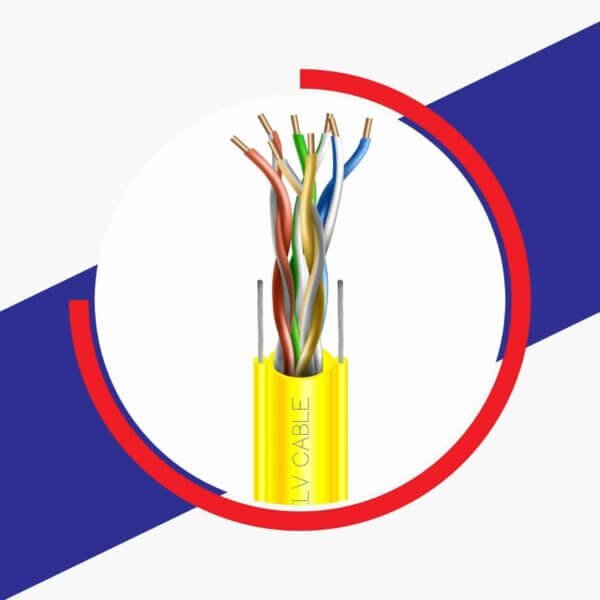

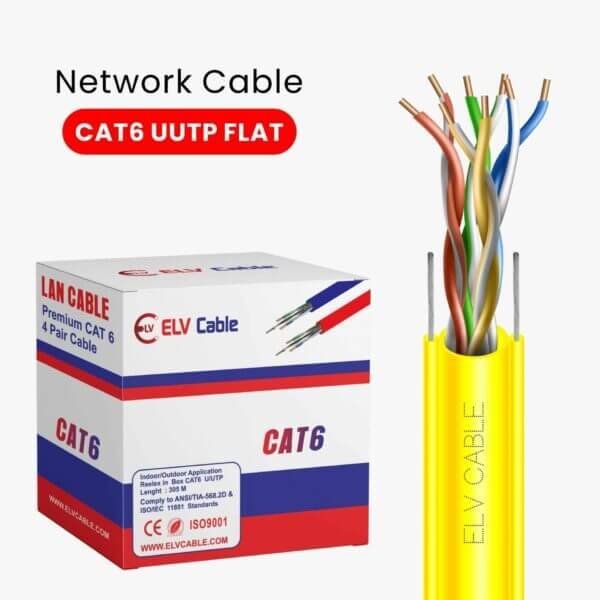

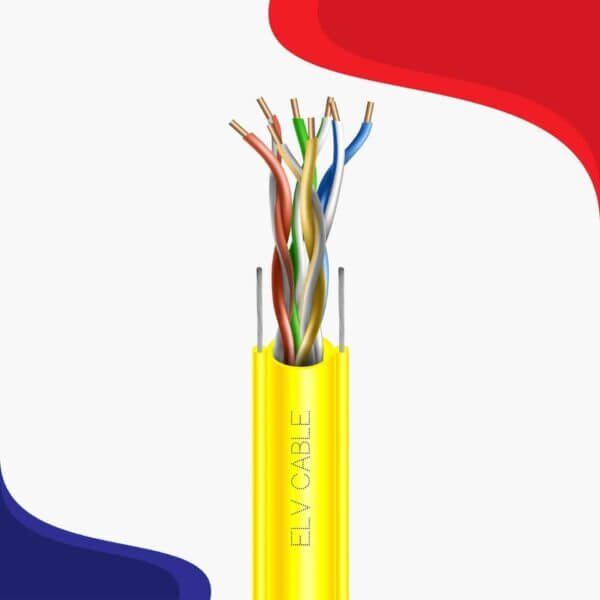

Cat 6 Utp Lift Flat Cable network 305m Yellow Color
$51.87
$76.25
elv cable Cat 6 Utp Lift Flat Cable network 305m Yellow Color TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.Cat 6 Utp Lift Flat Cable network 305m Yellow Color Application Audio/Video Intercom System Public Address System Access Control System Burglar Alarm System Lighting Control System CCTV Systems Gate Automation Smart Home Automation Building Automation Computer Systems Electronics Circuits Measurement Devices SMATV CATV Systems Office Equipment’s And Other ELV Systems Cat6 U-Utp Lift Flate Cable Series Yellow Color PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor ELV Copper Conductor Size 23awg Insulation HDPE Number Of Insulated Conductors 8, Twisted In 4 Pairs Color Code Of Pairs Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown Outer Jacket PVC Standard Jacket Color Gray/Blue/Black Standard Surface Marking Includes ELV CABLE P/N, Cable Description, Meter Mark And Batch Number Pulling Force 100 N MAX Short Term Bend Radius 6xOD (Mm) Storage Temperature -20 To 80C Temperature Operating Range -20 To 60C Installation Temperature Range 0 To 50C Flame Test IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance 100―6 Ohm @ 1-100 MHz Dielectric Strength 1500 Volts/1 Minute Min Rms DC Resistance 93 Ohm/Km Max. Velocity Of Propagation (NVP) 67-69% Resistance Unbalance 2% Max. Insulation Resistance 5000 Mega Ohm•Km Min. @ 500 Vdc Mutual Capacitance 5.6 NF/100m Max. @ 1 KHz Coupling Attenuation IEC 61156-5 TYPE III Cap. Unbalance (Wire To Ground) 1500 PF/Km Max. @ 1 KHz. Voltage Rating 72 Vdc Max. Ordering Information Item Code Description 6X636MEY 23awg 4pair cat6 u/utp lift flate cable series
