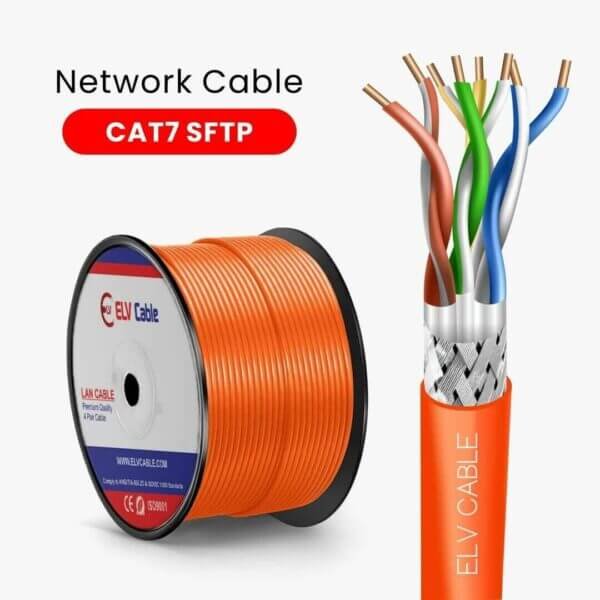

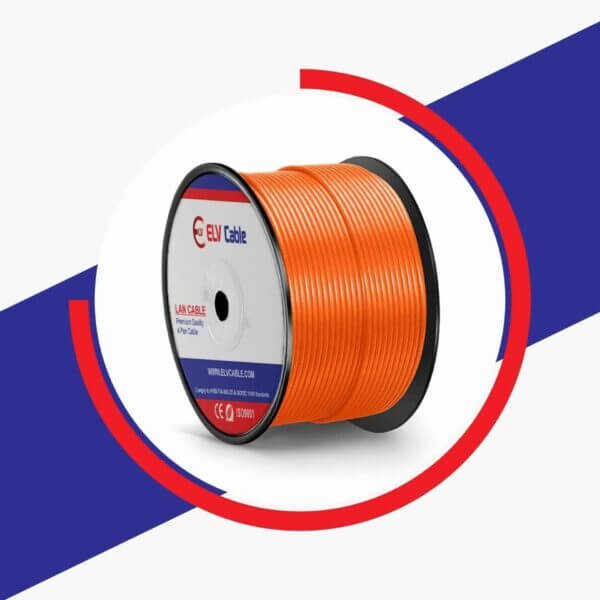

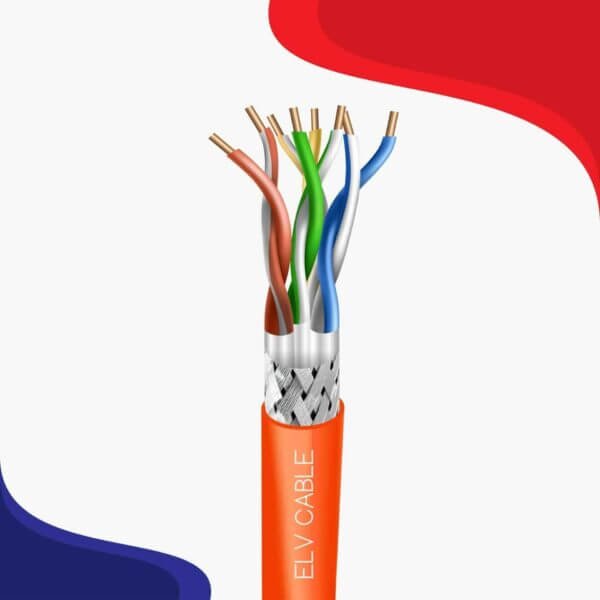

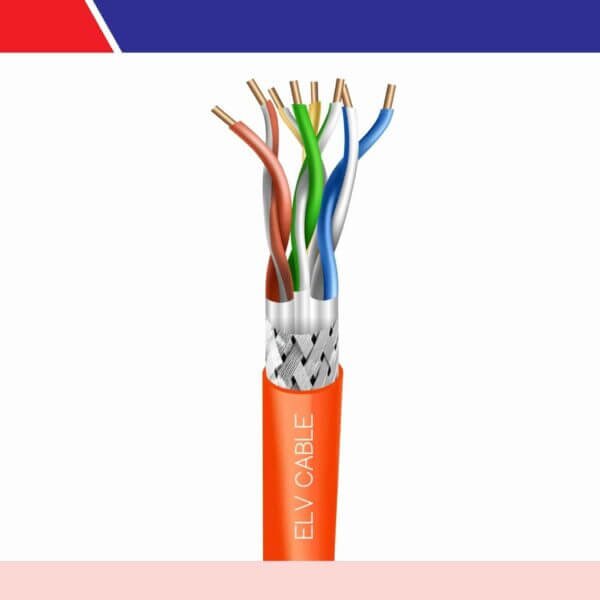

elv cable Cat7 network cable 23 awg 4 pair S/Ftp 305mOrange Color TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Cat7 23awg 4pair S-Ftp Orange Color Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.Cat7 network cable 23 awg 4 pair S/Ftp 305m Orange Color Application Audio/Video Intercom System Public Address System Access Control System Burglar Alarm System Lighting Control System CCTV Systems Gate Automation Smart Home Automation Building Automation Computer Systems Electronics Circuits Measurement Devices SMATV CATV Systems Office Equipment’s And Other ELV Systems Cat7 23awg 4pair S-Ftp Orange Color PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor ELV Copper Conductor Size (mm)0,56 Insulation Polyolefin Number Of Insulated Conductors 8, Twisted In 4 Pairs Color Code Of Pairs Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown Outer Jacket PVC Standard Jacket Color Gray/Blue/Black Standard Surface Marking Includes ELV Cables P/N, Cable Description, Meter Mark And Batch Number Pulling Force 110 N MAX Short Term Bend Radius 6xOD (Mm) Storage Temperature -20 To 80C Temperature Operating Range -20 To 60C Installation Temperature Range 0 To 50C Flame Test IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance 100―6 Ohm @ 1-100 MHz Dielectric Strength 1500 Volts/1 Minute Min Rms DC Resistance 93 Ohm/Km Max. Velocity Of Propagation (NVP) 67-69% Resistance Unbalance 2% Max. Insulation Resistance 5000 Mega Ohm•Km Min. @ 500 Vdc Mutual Capacitance 5.6 NF/100m Max. @ 1 KHz Coupling Attenuation IEC 61156-5 TYPE III Cap. Unbalance (Wire To Ground) 1500 PF/Km Max. @ 1 KHz. Voltage Rating 72 Vdc Max. Ordering Information Item Code Description 7X536MPO 23awg 4pair Cat7 S-Ftp Series
