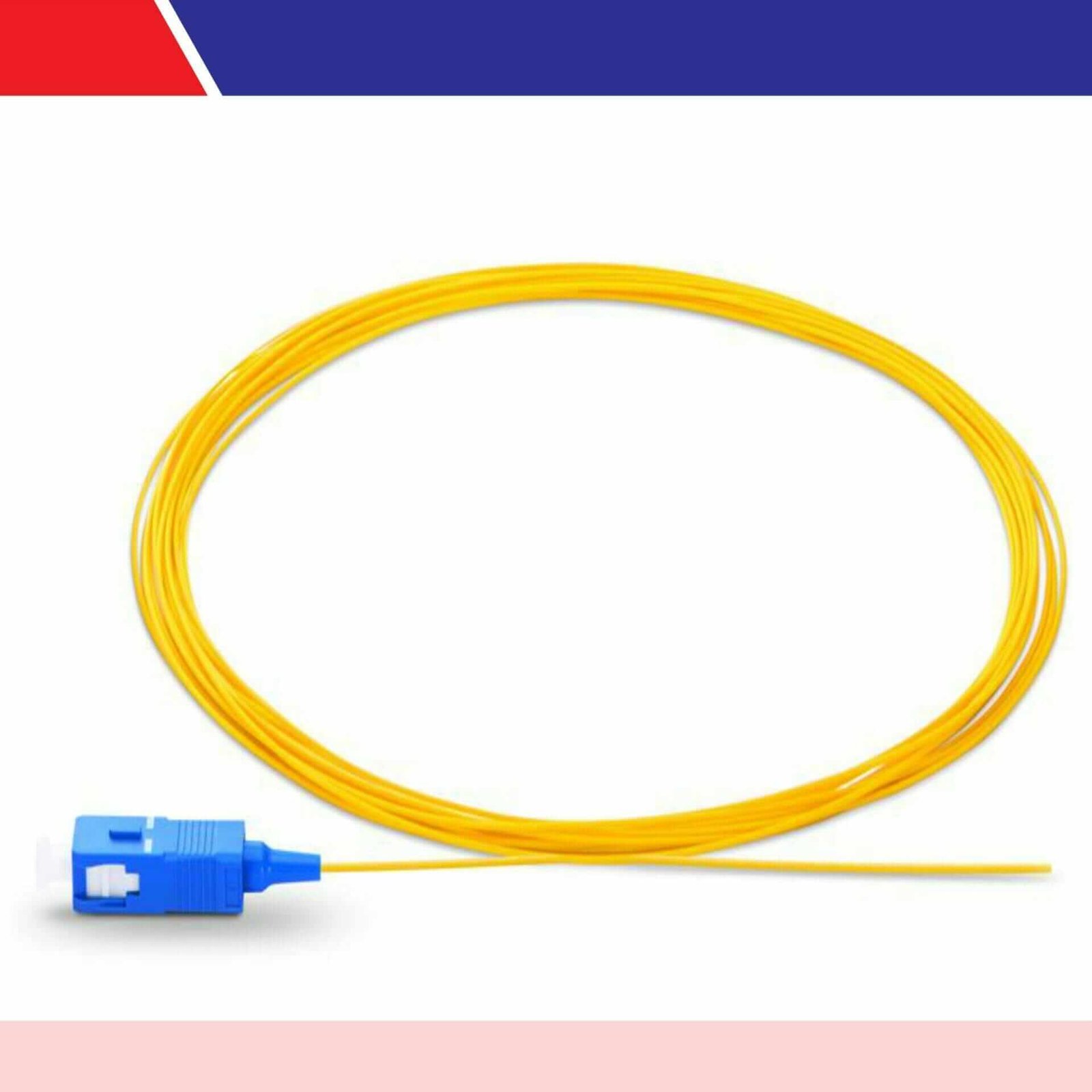

elv cable Pigtail sc upc Fiber Optic lszh 1m Single Mode ELV CABLE fiber optic pigtail is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The Pigtail are available in both single and multimode versions with either APC or UPC polish types. Pigtail sc upc Fiber Optic lszh 1m Single Mode Application Audio/Video Intercom System Public Address System Access Control System Burglar Alarm System Lighting Control System CCTV Systems Gate Automation Smart Home Automation Building Automation Computer Systems Electronics Circuits Measurement Devices SMATV CATV Systems Office Equipment’s And Other ELV Systems Optical Specification Connector SC,LC,FC,ST Polish Type APC,UPC,PC Fiber Mode 9/125um,50/125um Fiber Grade ITU-TG.652D, G.657A1 /A2,OM2,OM3,OM4 Wavelength SM:1310/1550nm MM:850nm Cable Diameter 0.9 mm ,2.0MM,3.0MM Insertion loss ≤0.2dB ≤0.12dB Return loss SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min) Interchangeability ≤0.2dB Vibration ≤0.2dB Impact (Nm) 0.2 Durability >1000 Times Minimum Bend Radius 30 mm Buffer Tight buffer,900um Operating temperature -45~75°C Storage temperature -45~85°C Jacket Material LSZH/PVC/OFNR/OFNP Color Yellow,Orange,Beige,Aqua,Purple Model no Products ID Ordering Information ELV-3376 P53001Y 1M SINGLE MODE SC/UPC SIMPLEX FIBER OPTIC PIGTAIL LSZH
